Fermentation System
High-Quality Stainless Steel Fermentation Tanks
- This is where the magic happens!
- Yeast is added after the wort is cooled, strained and filtered.
- The actual brewing process is finished and the fermentation starts.
- The beer is kept between 12-20 degrees Celsius, depending on the type of beer.
- While you’re waiting the yeast is working hard to eat up all sugar in the wort and creating alcohol in the meantime.
| 1. | Raw material:The fermentation tanks made from 304 or 316L stainless steel, you’ll have the highest quality of tanks available. |
| 2. | Usage: Beer bar, brewpub, hotel, home brew, restaurant, beer factory and so on. |
| 3. | Thermal insulation material: Polyurethane (PU) foam, thickness: 80MM. |
| 4. | Manhole: Side manhole. |
| 5. | Design pressure 3bar, Working pressure: 1.5bar; |
| 6. | Bottom design: 60degree cone for easy to exist yeast. |
| 7. | Cooling method: Dimple cooling jacket |
| 8. | Surface protection, weld slinging band with stainless steel leg, adjustable bolt to adjust leg height; |
| 9. | Argon arc welding, Inside and outside the polishing, No welding corner to ensure the quality of the fluid |

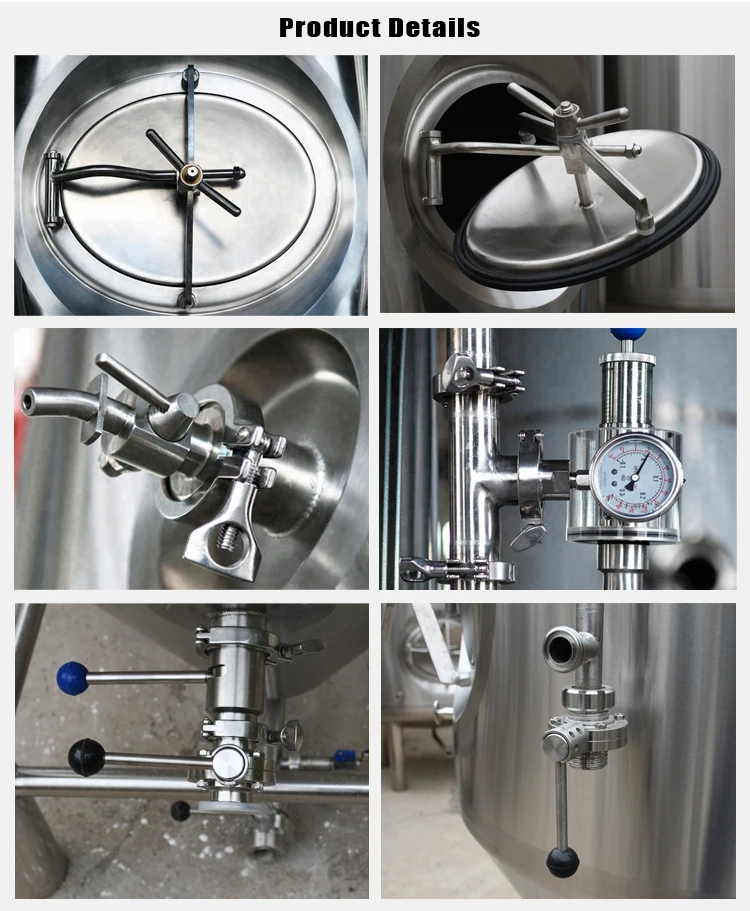

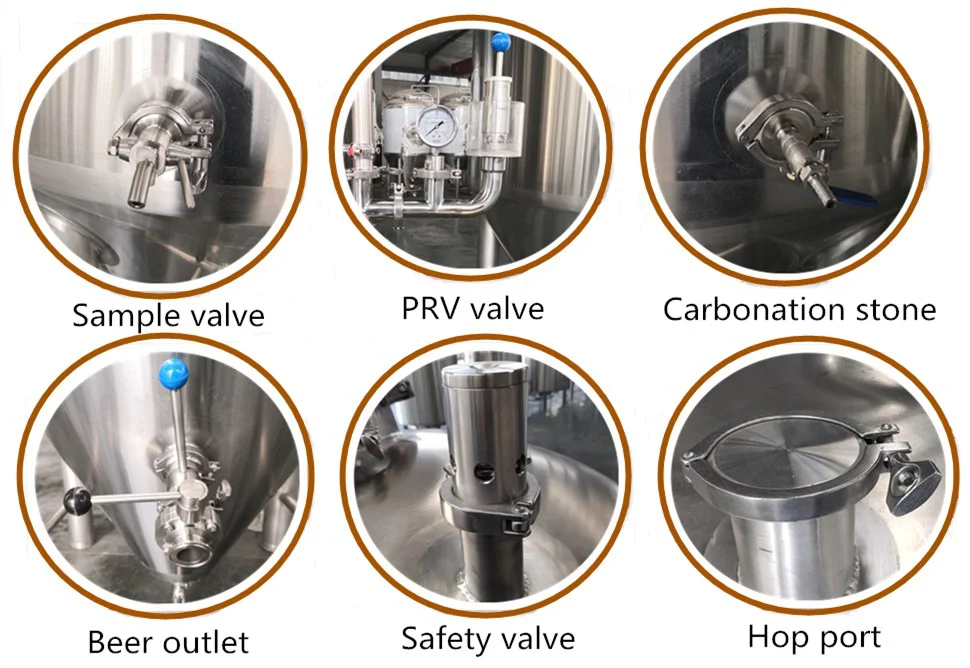

| 10. | With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, CO2 adding device, sampling valve, breath valve, Ice water solenoid valve, thermometer, etc. |
Stainless steel 1000L beer fermentation tank with cooling jacket for brewery equipment
SUS 304 beer fermneter with side manhole
Some data of the general fermenters.
| Items | Total Volume/L | ID/mm | OD/mm | Height/mm | Exchange area /Square meter | Weight/kg |
| 50L Fermenter | 70 | 350 | 450 | 1530 | 0.37 | 65 |
| 100L Fermenter | 140 | 500 | 630 | 1430 | 0.5 | 85 |
| 200L Fermenter | 250 | 600 | 750 | 1850 | 0.8 | 150 |
| 300L Fermenter | 400 | 650 | 800 | 2190 | 1 | 195 |
| 400L Fermenter | 550 | 750 | 900 | 2200 | 1.3 | 220 |
| 500L Fermenter | 660 | 800 | 970 | 2200 | 1.35 | 265 |
| 600L Fermenter | 770 | 800 | 970 | 2420 | 1.6 | 280 |
| 1000L Fermenter | 1300 | 1050 | 1200 | 2630 | 2.8 | 320 |
| 2000L Fermenter | 2560 | 1400 | 1560 | 2900 | 3.7 | 540 |
Company Information
Shandong Zunhuang Brewing Equipment Co., Ltd, located in Jinan city(China, mainland), is a professional beer equipment, fruit wine equipment manufacturer in China. We have CE and ISO certification and has exported more than 60 countries and regions of the word.
We could provide the turnkey project for customers, we have regular standard process including Production→ Inspection→ Packing & Shipping→ Installation &Training → After Sales.
Our main markets in Europe, North and South America, Asia, Australia and Afria and etc. including the United States, Spain, Germany, Canada, Sweden, Denmark, Russia, India, Brazil, Paraguay, Korea, and so on.

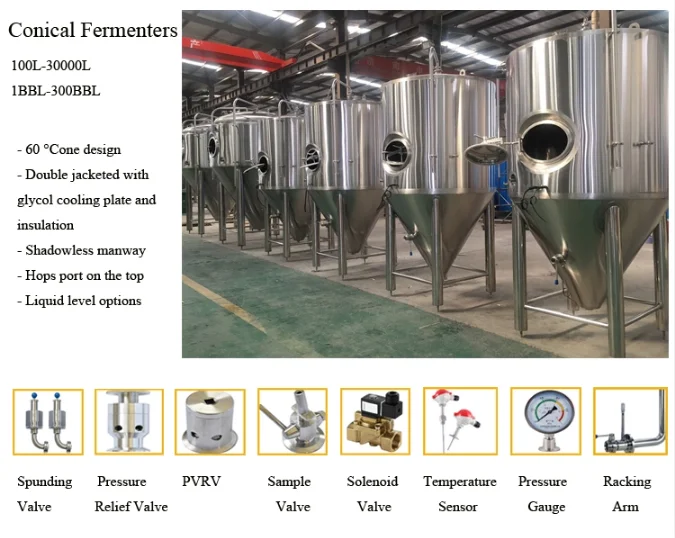

Stainless steel 1000L 2000L conical fermenter beer fermentation tank for beer fermenting system.
